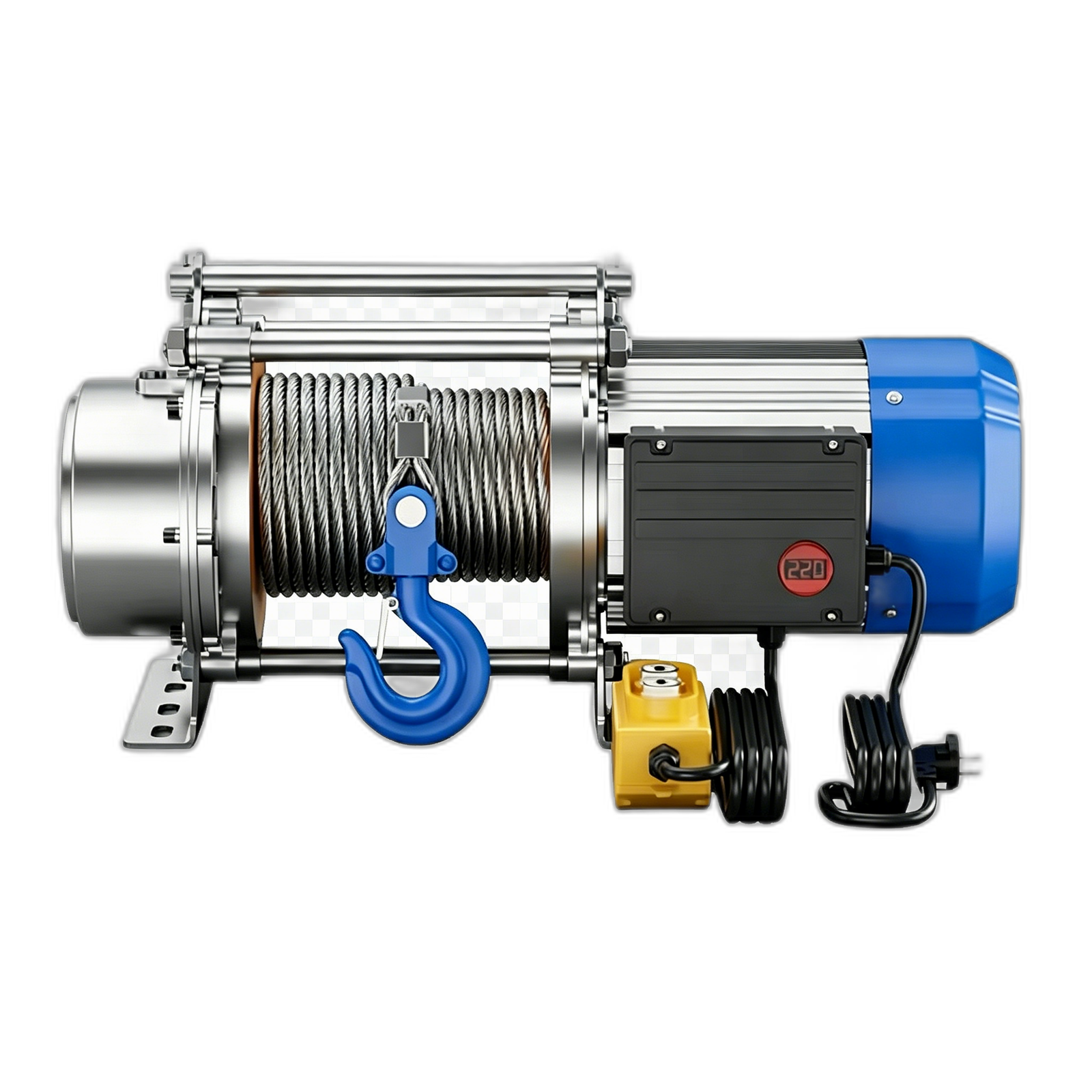

Electric & Manual Winch
Yulong winches are engineered for horizontal pulling and vertical lifting applications across construction, marine, mining, and industrial sectors. Available in electric winch and manual winch configurations, our drum winches feature robust construction, reliable braking systems, and smooth rope spooling. Designed for both continuous duty and intermittent heavy-load operations.
- High-torque electric motor with electromagnetic brake for safe holding
- Precision-welded drum with spiral grooving for even rope spooling
- Automatic fail-safe braking system — engages when power is off
- Galvanized or stainless steel wire rope options available
- Pendant control or remote radio control operation
- Thermal overload protection and limit switch for travel limits
Technical Specifications
| Model | Pull Capacity (kg) | Drum Capacity (m) | Wire Rope Dia. (mm) | Motor Power (kW) | Line Speed (m/min) | Net Weight (kg) |
|---|---|---|---|---|---|---|
| YL-WE01 | 500 | 50 | 6 | 1.5 | 12 | 55 |
| YL-WE02 | 1000 | 50 | 8 | 2.2 | 10 | 85 |
| YL-WE05 | 3000 | 70 | 10 | 4.0 | 8 | 150 |
| YL-WE10 | 5000 | 80 | 13 | 5.5 | 6 | 280 |
| YL-WE20 | 10000 | 100 | 16 | 7.5 | 5 | 450 |
| YL-WE50 | 20000 | 120 | 20 | 11 | 4 | 750 |
Applications
- Construction material hoisting
- Marine & dock pulling
- Mining & tunneling operations
- Warehouse & logistics
- Stage & event rigging
- Agricultural pulling
- Industrial plant maintenance
Also available: manual hand winches with crank operation for smaller capacities and portable use. Custom drum sizes, rope lengths, and hydraulic motor options available for specialized applications. Contact us with your requirements for a tailored solution.
