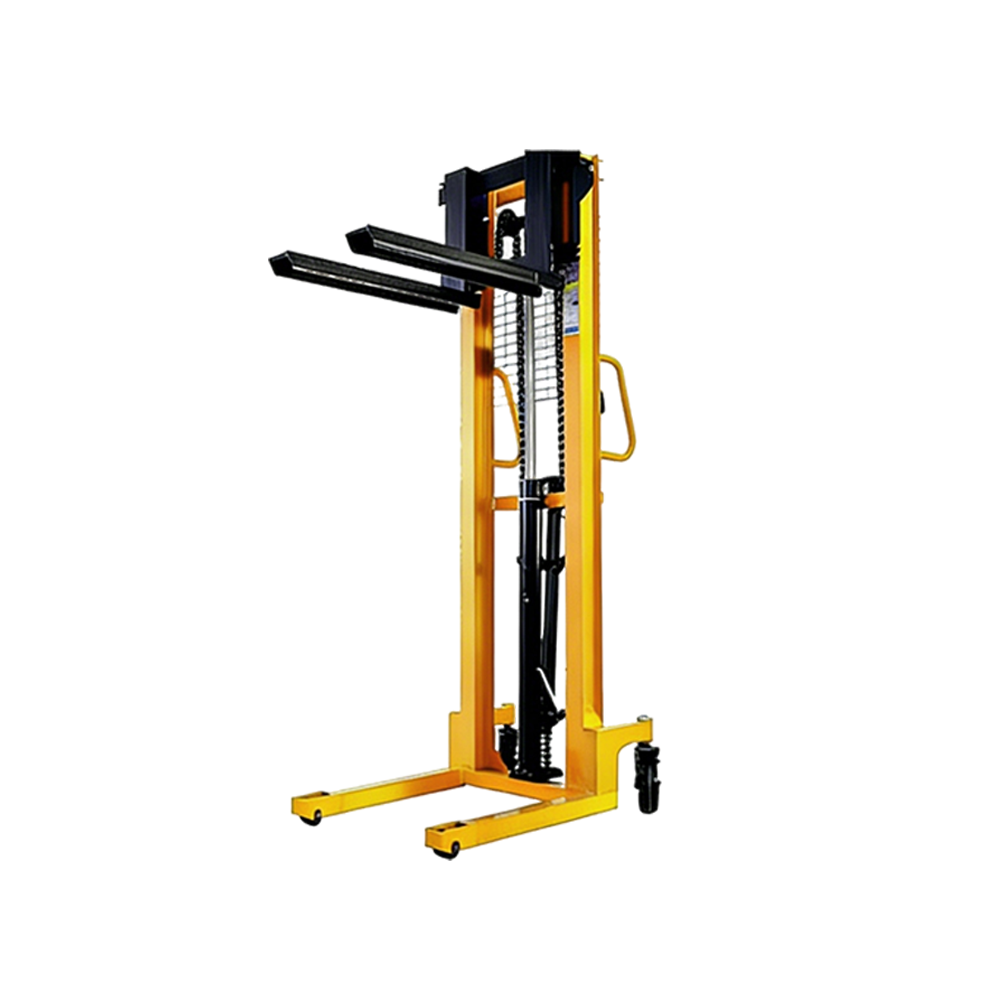

Manual Hydraulic Stacker
Our manual hydraulic stackers are designed for efficient lifting and stacking of pallets and goods in warehouses, workshops, and retail environments. Featuring a robust steel mast, reliable hydraulic pump, and ergonomic handle design, these hand stackers allow operators to easily lift loads to shelving height without power. Compact footprint and smooth-rolling wheels make them ideal for narrow aisles and tight spaces.
- Alloy steel C-channel mast for strength and stability
- Sealed hydraulic pump with safety overload valve
- Adjustable fork spread or fixed fork options
- Polyurethane load wheels for smooth, quiet operation
- Ergonomic handle with comfortable rubber grip
- Compact design for easy maneuverability in tight aisles
Technical Specifications
| Model | Capacity (kg) | Lifting Height (mm) | Fork Length (mm) | Overall Height (mm) | Lift Type | Net Weight (kg) |
|---|---|---|---|---|---|---|
| YL-MS05 | 500 | 1500 | 900 | 1950 | Hydraulic hand pump | 85 |
| YL-MS10 | 1000 | 1500 | 900 | 1950 | Hydraulic hand pump | 110 |
| YL-MS15 | 1500 | 2000 | 1000 | 2450 | Hydraulic hand pump | 145 |
| YL-MS20 | 2000 | 2500 | 1000 | 2950 | Hydraulic hand pump | 175 |
Applications
- Warehouse order picking
- Retail stockroom stacking
- Light manufacturing assembly
- Loading dock operations
- Small parts storage
- Mezzanine floor loading
- Workshop material handling
All Yulong manual hydraulic stackers are CE certified and factory tested. Custom lifting heights, fork lengths, and straddle leg options available for specialized applications. Contact us with your requirements for a tailored solution.
