G80 Chain Sling Assembly — Single / Two / Three Leg

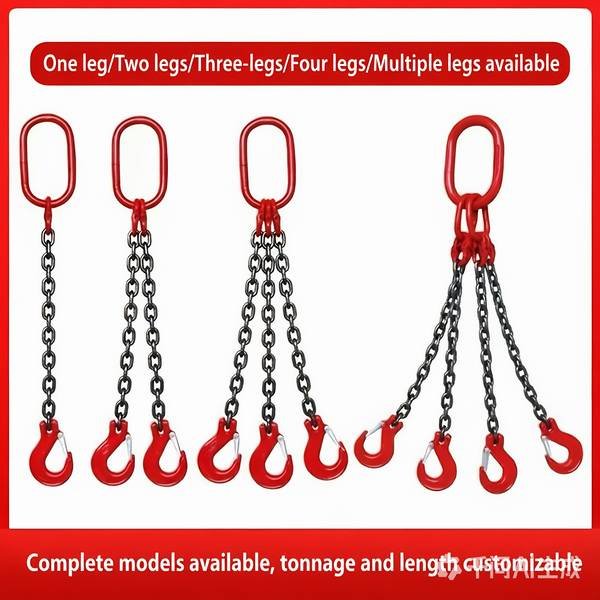

G80 chain sling assemblies in single-leg, two-leg and three-leg configurations. Made from 20Mn2 alloy steel with quench and temper heat treatment, safety factor 4:1, operating temperature -40°C to 200°C. Complies with GB/T20652 and EN818-4 standards. Standard chain length 3m (custom 4/5/6m available).
Request Quote →1. Single-Leg Chain Sling (1 Chain + Master Link + 1 Hook)
| Chain Size d×p (mm) | Single Leg Capacity (t) | Min. Breaking Force (kN) | Hook Rating | Master Link Rating | Chain Weight (kg/m) | 3m Total Weight (kg) |
|---|---|---|---|---|---|---|
| 6×18 | 1.1 | 45.2 | 1.5T | 2T | 0.79 | ≈4.2 |
| 8×24 | 2.0 | 80 | 3T | 4T | 1.35 | ≈6.8 |
| 10×30 | 3.2 | 128 | 5T | 6T | 2.10 | ≈10.5 |
| 13×39 | 5.0 | 200 | 8T | 10T | 3.30 | ≈16.2 |
| 16×48 | 8.0 | 320 | 12T | 16T | 5.10 | ≈24.5 |
Single-leg: vertical point lifting only, no angle derating. Diagonal pull or side loading drastically reduces capacity and is prohibited.

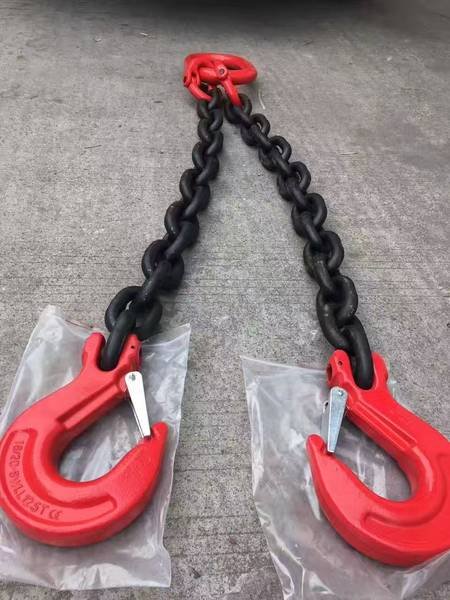

2. Two-Leg Chain Sling (2 Chains + Master Link + 2 Hooks)
Capacity varies by angle: 0–45° = full rated load; 45–60° = ×0.7; >60° prohibited.
| Chain Size d×p (mm) | Single Chain Capacity (t) | 0–45° Total Capacity (t) | Hook Rating | Master Link Rating | 3m Weight (kg) |
|---|---|---|---|---|---|
| 6×18 | 1.1 | 1.9 | 1.5T | 2T | 5.6 |
| 8×24 | 2.0 | 3.4 | 3T | 4T | 9.2 |
| 10×30 | 3.2 | 5.4 | 5T | 6T | 14.3 |
| 13×39 | 5.0 | 8.5 | 8T | 10T | 22.1 |
| 16×48 | 8.0 | 13.6 | 12T | 16T | 33.4 |
3. Three-Leg Chain Sling (3 Chains + Master Link + 3 Hooks)
Capacity varies by angle: 0–45° = full rated load; 45–60° = ×0.7; >60° prohibited. If only 2 legs bear load, use two-leg rating.
| Chain Size d×p (mm) | Single Chain Capacity (t) | 0–45° Total Capacity (t) | Hook Rating | Master Link Rating | 3m Weight (kg) |
|---|---|---|---|---|---|
| 6×18 | 1.1 | 2.7 | 1.5T | 3T | 7.1 |
| 8×24 | 2.0 | 4.8 | 3T | 5T | 11.6 |
| 10×30 | 3.2 | 7.7 | 5T | 8T | 18.1 |
| 13×39 | 5.0 | 12.0 | 8T | 12T | 28.0 |
| 16×48 | 8.0 | 19.2 | 12T | 20T | 42.3 |
Common Component Specifications
- Load chain: 20Mn2 alloy steel, quench & temper heat treated, black oxide finish. Elongation at break ≥17%. Discard if diameter wear exceeds 10%.
- Master link / Connecting link: Forged alloy steel, red baked enamel. Breaking load ≥ 4× total sling rated capacity.

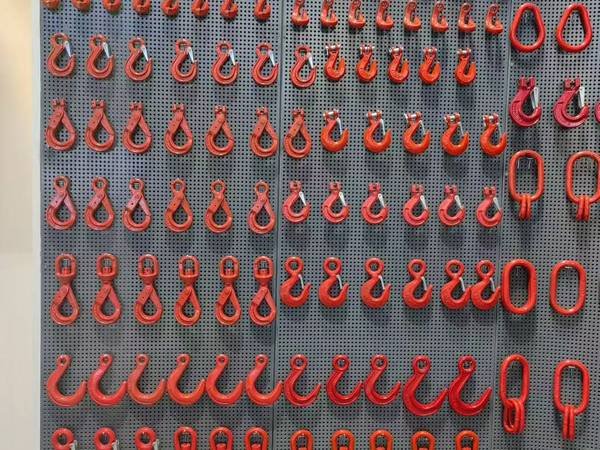

- Self-locking hooks: Drop-forged alloy steel with spring safety latch, 360° rotation. Hook breaking load ≥ 4× single chain rated capacity.
- Safety standard: Overall safety factor 4:1. Factory proof load test = rated load × 2.5. Each sling marked with capacity, leg count and standard.
Critical Usage Notes
- Multi-leg slings must distribute load evenly across all legs — uneven loading can overload a single chain
- Always use edge protectors when lifting sharp-edged loads to prevent chain shear damage
- Never knot, twist, or weld on the chain — high heat reduces chain strength
- Recommended operating temperature: -40°C to 200°C; avoid prolonged exposure above 200°C
All Yulong G80 chain sling assemblies are tested at 2.5× rated load before shipment and supplied with batch test certificates. Custom leg lengths, master link sizes, and hook types available upon request.
