220V Single Phase Electric Wire Rope Hoist — PA Series
PA is a civil-grade single-phase 220V wire rope mini electric hoist, available in single-rope and dual-rope configurations:
- Single rope — capacity halved, lift height doubled, faster speed
- Dual rope — full rated capacity, height halved, speed halved
- Common standards — 220V/50Hz, electromagnetic power-off brake, upper & lower limit switches, IP54 protection, S3 duty cycle (20 min intermittent, no prolonged continuous lifting)
Technical Specifications — PA Series
| Model | Single Rope Capacity (kg) | Dual Rope Capacity (kg) | Single Rope Height (m) | Dual Rope Height (m) | Single Speed (m/min) | Dual Speed (m/min) | Motor Power | Rope Dia. | Net Weight |
|---|---|---|---|---|---|---|---|---|---|
| PA200 | 100 | 200 | 12 | 6 | 10 | 5 | 0.51kW | 3mm | 22kg |
| PA300 | 150 | 300 | 12 | 6 | 10 | 5 | 0.60kW | 3mm | 23kg |
| PA400 | 200 | 400 | 12 | 6 | 10 | 5 | 0.75kW | 3.5mm | 25kg |
| PA500 | 250 | 500 | 12 | 6 | 10 | 5 | 1.02kW | 4mm | 32kg |
| PA600 | 300 | 600 | 12 | 6 | 10 | 5 | 1.05kW | 4mm | 34kg |
| PA800 | 400 | 800 | 12 | 6 | 8 | 4 | 1.35kW | 4.5mm | 37kg |
| PA1000 | 500 | 1000 | 12 | 6 | 8 | 4 | 1.60kW | 5mm | 40kg |
Electrical Configuration
- Control voltage: 220V direct pendant control, optional wireless remote
- Starting capacitor: 16–35μF (increases with model)
- Motor type: Single-phase capacitor-run asynchronous motor, Class B insulation

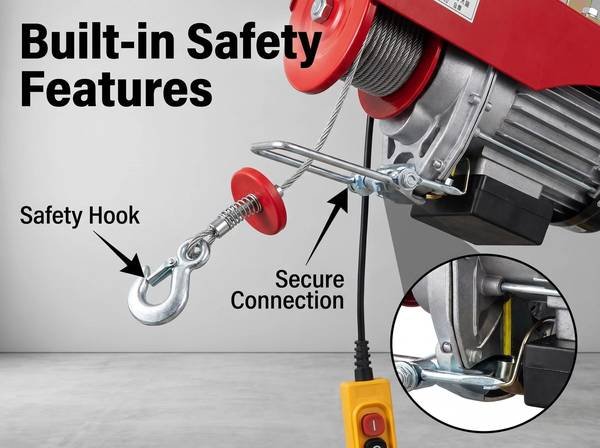

Safety Features
- Automatic power-off electromagnetic brake
- Upper & lower travel limit switches
- Safety latch on hook
- Proof load tested at 1.25× rated capacity
Extended Options
- Extended wire rope: 18m / 24m / 30m available, capacity and speed unchanged
- Trolley mount: compatible with I-beam track for lateral movement
- Applications: renovation material lifting, warehouse light goods, home use, small production lines
Selection Notes
- Strictly avoid continuous full-load operation — max 10 min per lift, allow cooling between cycles
- For high-frequency industrial lifting, choose three-phase CD/MD wire rope hoists instead; PA series is for light intermittent use only
- Recommended 1.2× safety margin on actual load; avoid prolonged dual-rope full-load operation
All Yulong PA series hoists are tested at 1.25× rated capacity before shipment. Custom rope lengths and wireless remote control available. Contact us with your requirements for a tailored solution.
