Hydraulic Jack — QYL / Floor / QL / CLSG Series
Common specifications: Rated load with safety factor ≥1.5. Test load = rated ×1.25. Min. height = fully retracted piston height. Lift stroke = max piston travel. Max height = min height + stroke. Working oil pressure 70MPa (700 bar). Temperature range -20°C to +60°C (low-temp oil available for -40°C). Four series available: QYL bottle jack, floor jack, QL screw jack, and CLSG split cylinder jack.

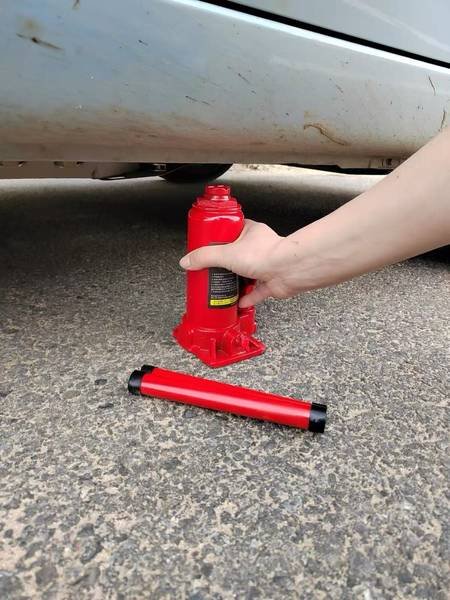

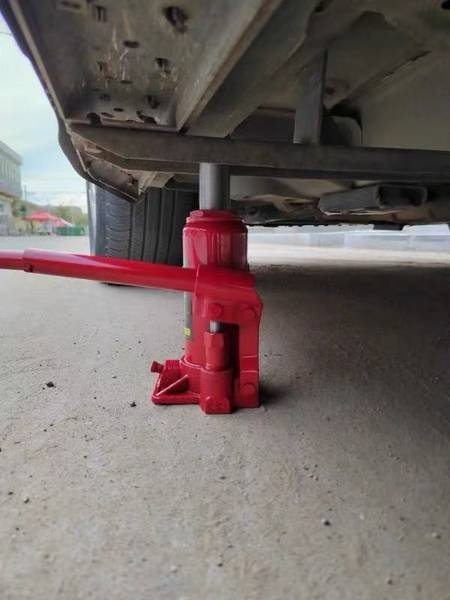

Request Quote →1. QYL Vertical Bottle Jack (Vehicle / Workshop, Red Integral Hydraulic)
| Model | Capacity (T) | Min. Height (mm) | Stroke (mm) | Max Height (mm) | Oil Pressure (MPa) | Weight (kg) | Piston Dia. (mm) |
|---|---|---|---|---|---|---|---|
| QYL2 | 2 | 181 | 115 | 296 | 70 | 2.4 | 28 |
| QYL3 | 3 | 193 | 120 | 313 | 70 | 3.2 | 32 |
| QYL5 | 5 | 210 | 136 | 346 | 70 | 3.9 | 36 |
| QYL8 | 8 | 230 | 150 | 380 | 70 | 5.0 | 40 |
| QYL10 | 10 | 230 | 150 | 380 | 70 | 6.0 | 45 |
| QYL16 | 16 | 230 | 150 | 380 | 70 | 7.1 | 50 |
| QYL20 | 20 | 242 | 150 | 392 | 70 | 9.1 | 55 |
| QYL32 | 32 | 260 | 160 | 420 | 75 | 17.5 | 65 |
| QYL50 | 50 | 300 | 180 | 480 | 75 | 25.3 | 78 |
- Built-in overload relief valve, rubber seals to prevent leakage

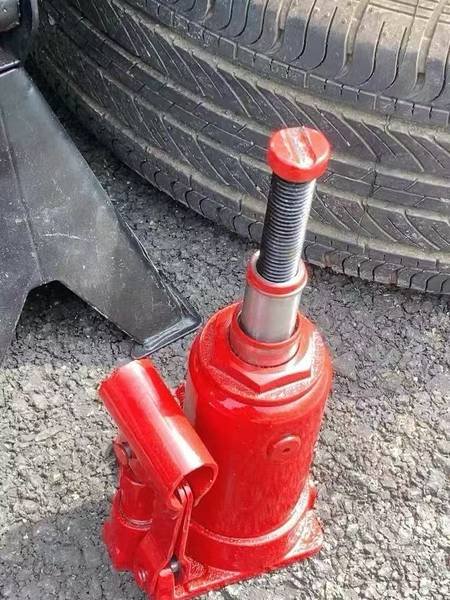

- Extension screw in top saddle adds 50–80mm extra height
- Comes with extended hand lever for single-person manual operation
- Application: Trucks, equipment, molds, tire changes
2. Floor Jack (Trolley Jack — Low Chassis, Caster Wheels)
| Capacity | Min. Height (mm) | Stroke (mm) | Max Height (mm) | Weight (kg) | Saddle Size (mm) |
|---|---|---|---|---|---|
| 2T Home | 140 | 150 | 290 | 6.5 | 90×70 |
| 2.5T Auto | 145 | 160 | 305 | 8.2 | 100×80 |
| 3T Heavy | 150 | 170 | 320 | 11.5 | 110×90 |
| 5T Low-Profile | 130 | 180 | 310 | 16 | 120×100 |
- Swivel caster wheels for easy positioning — ideal for low-clearance cars and SUVs
- Dual-pump rapid lift system, slow-release valve for controlled lowering
3. QL Screw Mechanical Jack (Worm Gear, No Hydraulic, No Leak)
| Model | Capacity (T) | Min. Height (mm) | Stroke (mm) | Handle Force (N) | Weight (kg) |
|---|---|---|---|---|---|
| QL5 | 5 | 250 | 130 | ≤320 | 5.2 |
| QL10 | 10 | 280 | 150 | ≤340 | 8.6 |
| QL20 | 20 | 320 | 180 | ≤380 | 18.5 |
| QL32 | 32 | 395 | 200 | ≤400 | 17.3 |
| QL50 | 50 | 400 | 200 | ≤420 | 46 |
- Worm gear self-locking — holds load even if power is lost, ideal for long-term support
- Screw: 45# hardened steel; nut: copper alloy wear-resistant; cast iron body
- Application: Bridge, steel structure, equipment permanent support
4. Split Single-Acting Hydraulic Cylinder (CLSG — Large Tonnage, Remote Pump)
| Capacity | Body Height (mm) | Stroke (mm) | Max Height (mm) | Cylinder OD (mm) | Weight (kg) | Oil Pressure |
|---|---|---|---|---|---|---|
| 10T | 100 | 50 | 150 | 80 | 3.2 | 70MPa |
| 20T | 120 | 50 | 170 | 100 | 5.8 | 70MPa |
| 30T | 130 | 60 | 190 | 115 | 8.5 | 70MPa |
| 50T | 162 | 50 | 212 | 130 | 12 | 70MPa |
| 100T | 180 | 100 | 280 | 180 | 44.6 | 70MPa |
- Hose: High-pressure rubber hose, rated 100MPa, standard 2m/3m/5m
- Hand pump: Rated output 70MPa, oil capacity 0.8–2L
- Coupler: 3/8" NPT standard with dust cap
- Cylinder separate from pump — for confined spaces, bridge synchronous lifting, equipment disassembly
Common Technical Specifications — All Jack Types
Safety
- Hydraulic: Built-in relief valve, overload auto-release. Never exceed rated capacity.
- Screw: Mechanical self-lock, load stays when handle stops.
Seals & Materials
- Piston: Hard chrome plated bore, wear and rust resistant. NBR oil-resistant seals.
- Body: Cast iron / heavy carbon steel, red anti-corrosion paint.
Discard Criteria
- Cracked or severely deformed cylinder, persistent oil leak beyond repair
- Worn/stripped screw threads, self-lock failure
- Deformed base, cracked or pitted saddle
Selection Guide
- Car tire change: 2T/3T QYL bottle jack
- Low-clearance auto shop: 2.5T/3T floor jack
- Long-term equipment support, no power: QL screw jack
- Confined space, bridge, heavy equipment dismantling: CLSG split cylinder jack
All Yulong jacks are oil-filled and factory tested before shipment. Use 1.2× safety margin for load selection. Avoid prolonged full-load operation. Custom capacities and stroke lengths available for OEM orders.
